Functional Properties Analysis

Main specifications

1. Load/torque range: ±10kN, ±100Nm;

2. Dynamic sensor accuracy: ±0.5%;

3. Displacement/angular displacement stroke: ±30mm, ±5760 degrees;

4. Loading frequency: 0.01~100Hz;

5. Loading speed: 0.0001mm/s~1000mm/s, 0.0001~1500 degrees/second.

Main functions

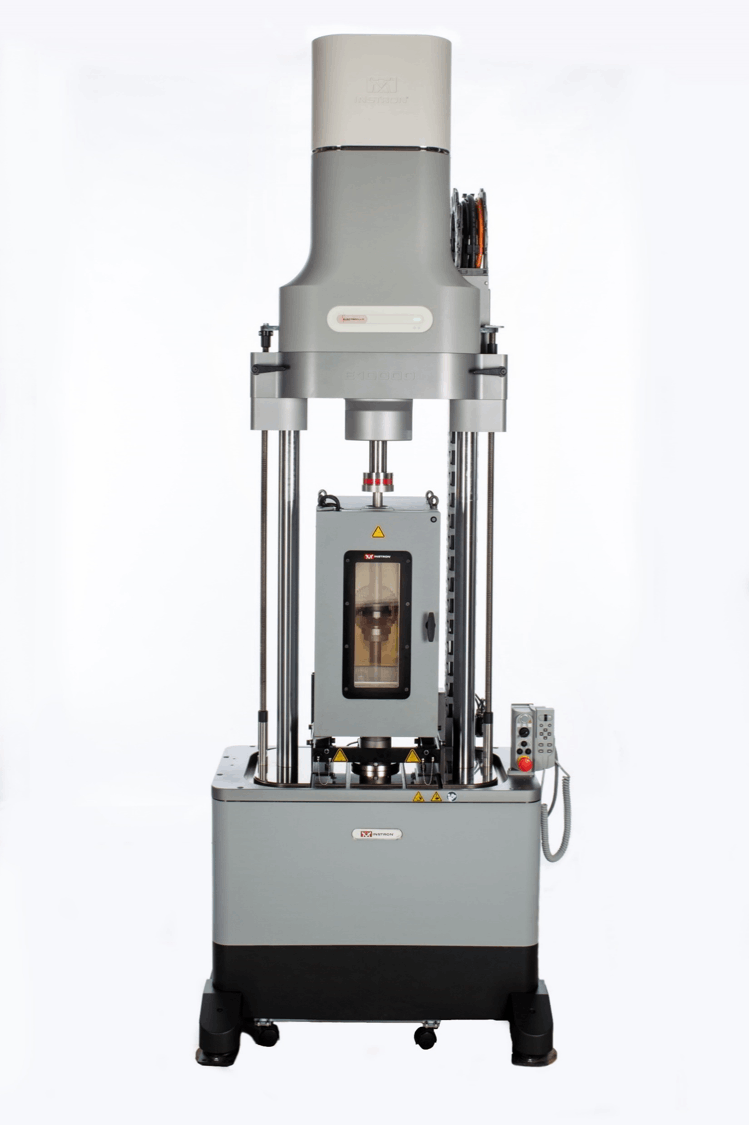

Used for dynamic mechanical performance testing of materials/devices such as metal, plastic, rubber, and composite materials in ambient/ high/low temperature environments, testing SN curves and fatigue life prediction of materials. Equipped with high/low temperature environmental chamber, DMA calculation module, compatible with 3D-DIC.
