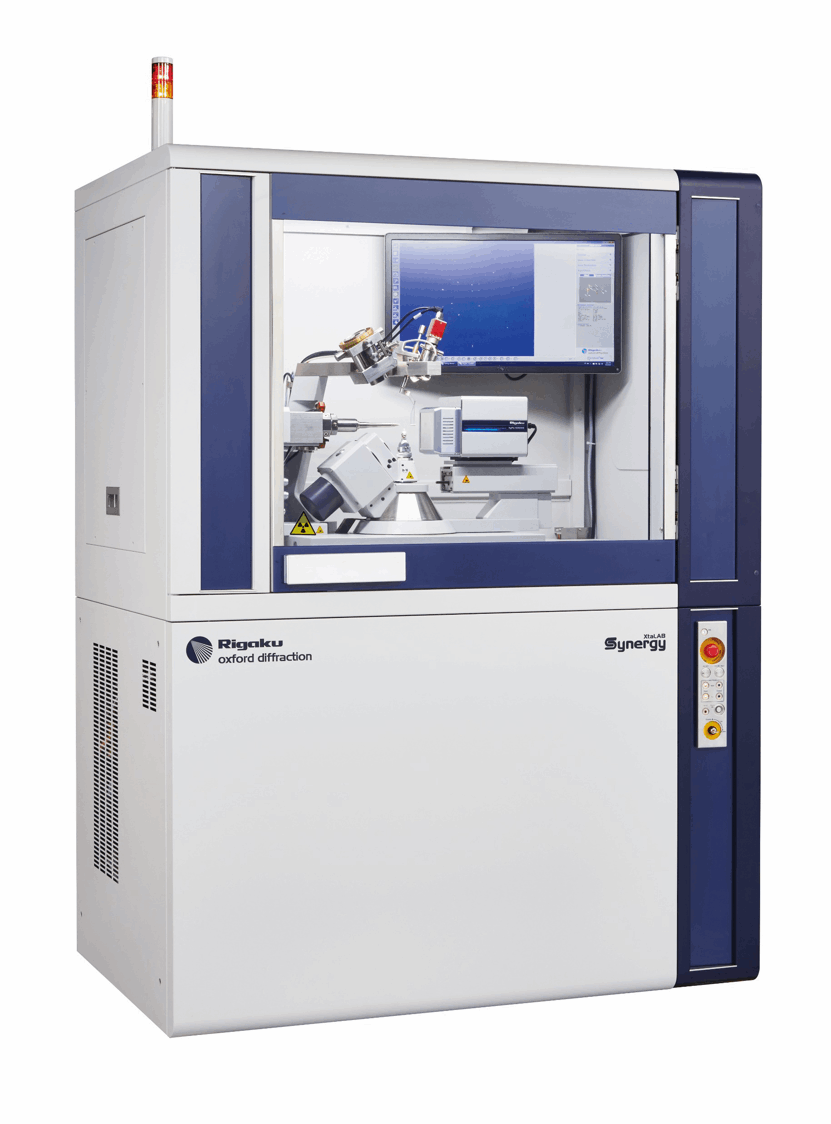

X-Ray Single Crystal Diffractometer

Asset number

MC-XA-0006

Model

XtaLAB Synergy-DW

Brand

Rigaku Corporation

Asset Leader

黄允然 Lawrence WONG

Contact email

lawrwong@hkust-gz.edu.cn,niruye@hkust-gz.edu.cn

Location

W2-124

Booking Online

Main specifications

1. 1.2KW Cu/Mo Dual Wavelength Microfocus Source

2. Working Voltage/Current: Cu: 40kV 30mA, Mo: 50kV 24mA

3. Hybrid Photon Counting 100o Arc Detector

4. Four Circle (Kappa) Goniometer

5. Oxford Stream 1000 Liquid Nitrogen Low temperature: 100-400K

Main functions

1. Crystal Structure Determination (including unit cell checking, space group determination, 3D structure, bond length/angle, packing arrangement etc)

2. Absolute Configuration Determination (Chirality)

3. Electron Density Measurement, Twin Refinement, Superlattices and Microstructural Determination
