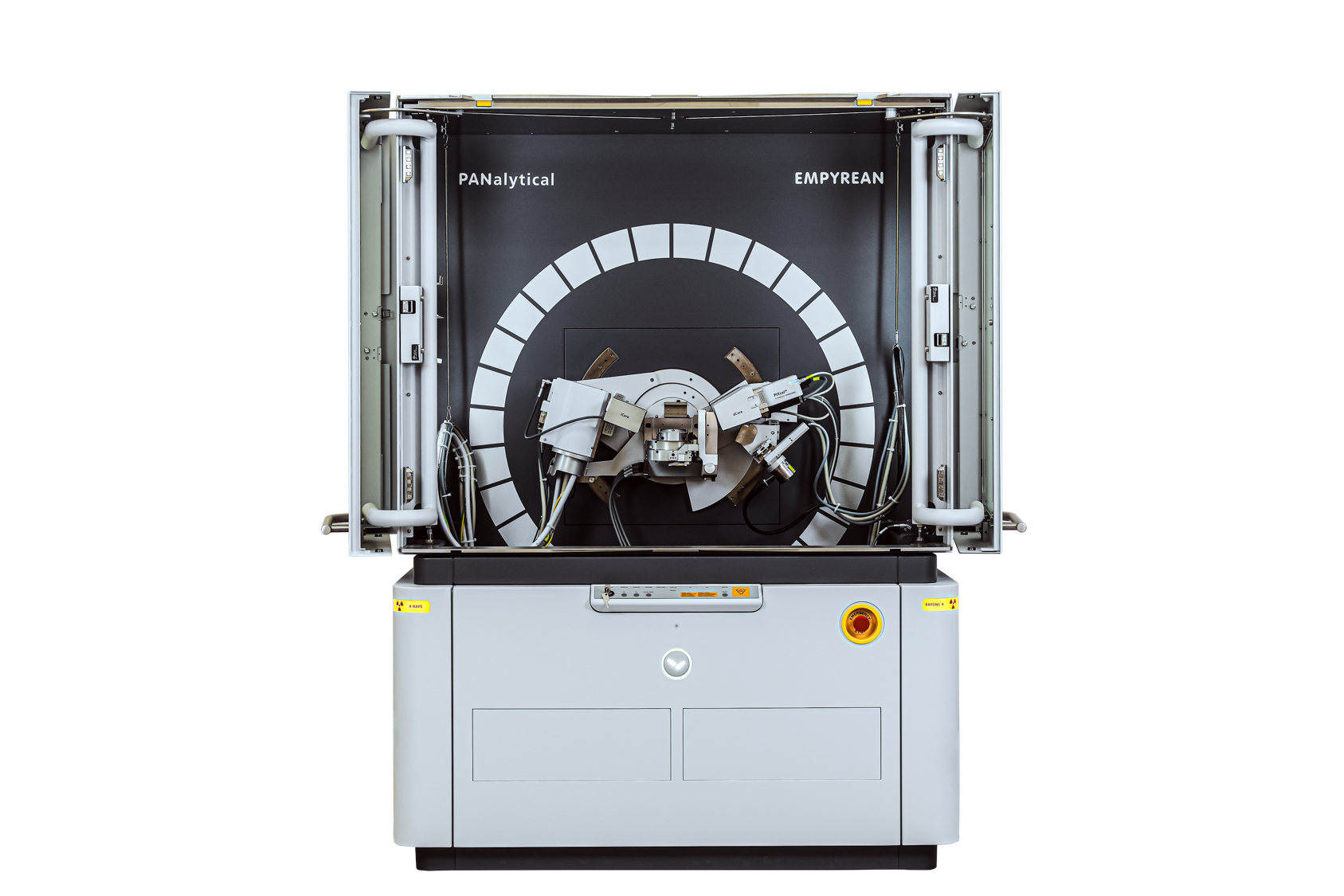

X-Ray Analysis

Main specifications

1. Empyrean tube Cu LFF (HR): maximum voltage 50kV, maximum current 55mA, maximum power 1.8kW

2. scanning mode：θ/θ vertical geometry, mnimum step width: 0.0001°

3. Measurement Radius：240 mm Direct optical positioning and equipping with DC motors，angular accuracy 0.001°

4. PIXcel3D 2D Area detector

5. 5-Axis cradle (Chi-Phi-X-Y-Z)

6. Incident beam monochromator: 4-crystal monochr. Ge220, with Kα1 monochromator, can filter Kα2

7. Dual detectors option: PreFIX 3-bounce sym. analyzer, Xe 20x24mm DS, dual scaler board, HV Conv. for detector

Main functions

1. Solid samples: phase identification and quantification, residue stress analysis and texture analysis

2.Thin film samples: thin film grazing incidence XRD, X-ray Reflectometry, residue stress analysis, 2D XRD, micro-XRD analysis

Equipment usage instructions

1.按预约时间计费，机时未满 1小时按 1小时计费，请按时上机；

2.测试过程中如遇设备问题请及时联系仪器管理员。
