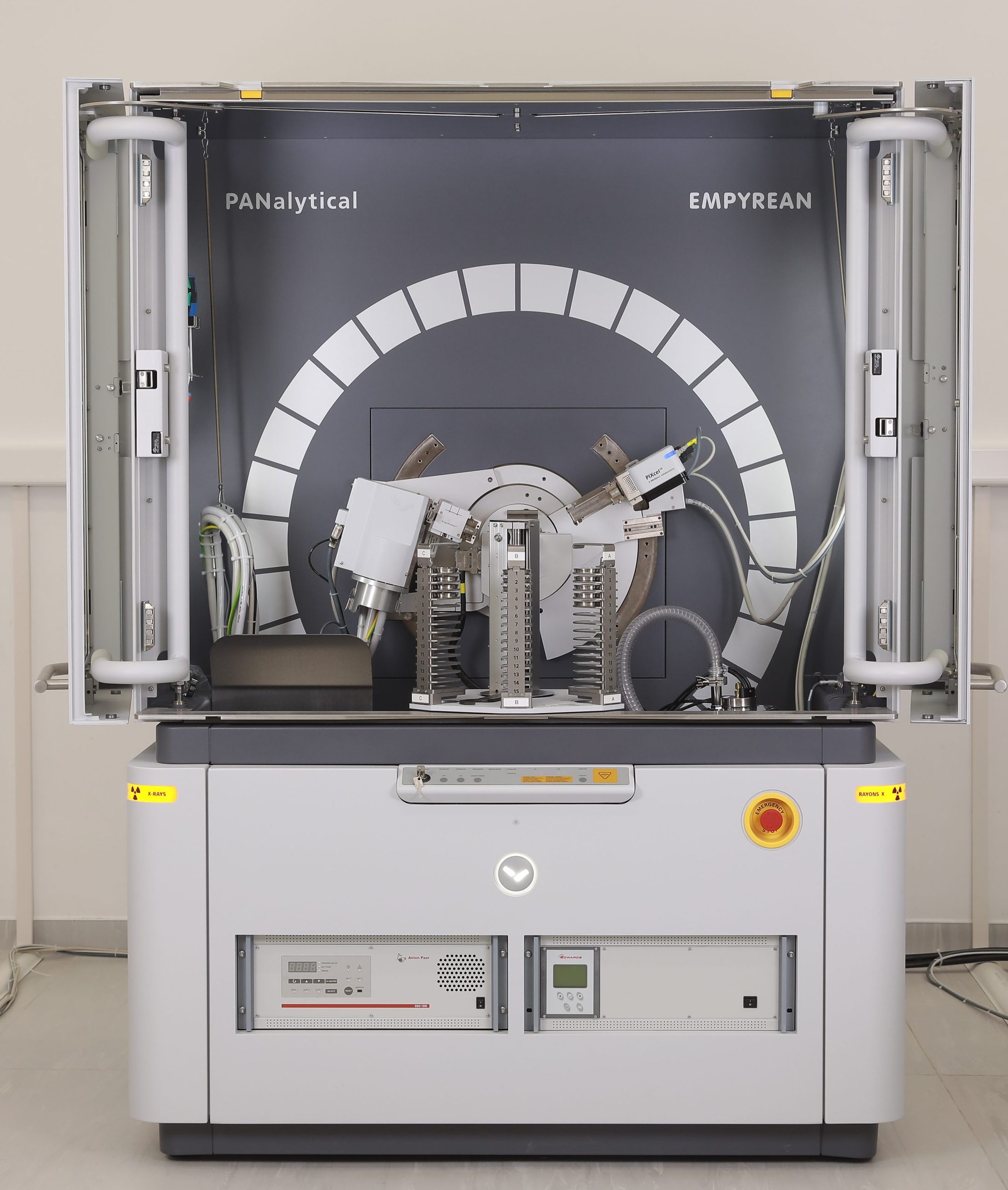

X-Ray Analysis

Main specifications

1. Empyrean tube Cu LFF (HR): maximum voltage 50kV, maximum current 55mA, maximum power 1.8kW

2. scanning mode：θ/θ vertical geometry, minimum step width: 0.0001°

3. Measurement radius：240 mm Direct optical positioning and equipping with DC motors, angular accuracy 0.001°

4. Standard and rotating reflectivity sample stage with 45 position autosampler

5. PIXcel1D 1D Strip detector

Main functions

1. High-throughput phase identification and quantification analysis with 45 position autosampler

2. HTK 1200N Oven: temperature range from room temperature to 1200°C, radiant heating with automatic compensation for height changes

3. Easy SAXS module: can perform SAXS analysis with incident angle < 0.05°, cannot analyze plastic and emulsion samples

Equipment usage instructions

1. 按预约时间计费，机时未满1小时按1小时计费，请按时上机；

2. 测试过程中如遇设备问题请及时联系仪器管理员。
